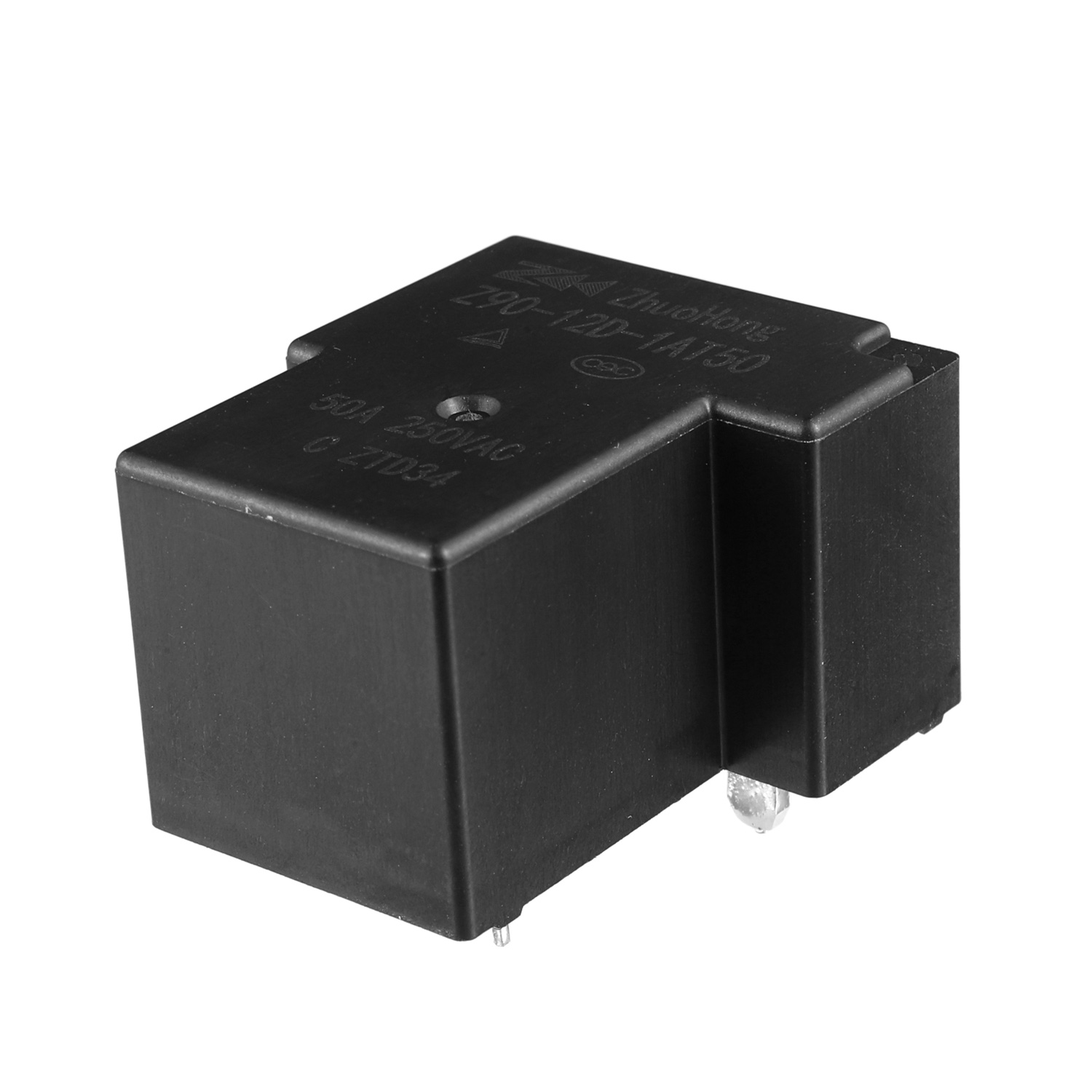

Z90
- 产品认证：
-
UL TUV CQC
- PDF下载：
-
- 典型应用：
-
空调 电机 智能家居 变频器 新能源
30A/40A/50A/60A/70A/80A 切换容量 30A/40A/50A/60A/70A/80A switching capability
爬电距离 5.0mm Creepage distance: 5.0mm
触点与线圈间介质耐压 5KV 5kV dielectric strength (between coil and contacts)
触点间隙 1.8mm/3.0mm 可选(符合欧洲 VDE0126 光伏标准) 1.8mm/3.0mm contact gap for choose (compliant to European Photovoltaic standard VDE0126)
低功耗，低温升，低保持;40A/50A/60A/70A/80A 载流温升低于 50K Low coil power, Low temperature rise, Low coil holding voltage,40A/50A/60A/70A/80A current carrying temperature rise below 50K
线圈功耗: 0.9W/1.6W/2.2W Coil power: 0.9W/1.6W/2.2W For choose
